How to enter the configuration panel of F1100W-4SX-4XGT

February 15, 2025

cover
Source: j1nseitsuraiman
  1. Connect the power cable. Expect the PWR light to be orange. Wait until it flashes between orange and green.
  2. Connect the switch to a Mac using one of the Ethernet ports.
  3. Go to System Settings > Network. The switch connection should show up. Click it.
  4. Click Details > TCP/IP. Change Configure IPv4 to Manually. Change IP address to 192.168.0.2. Click OK.

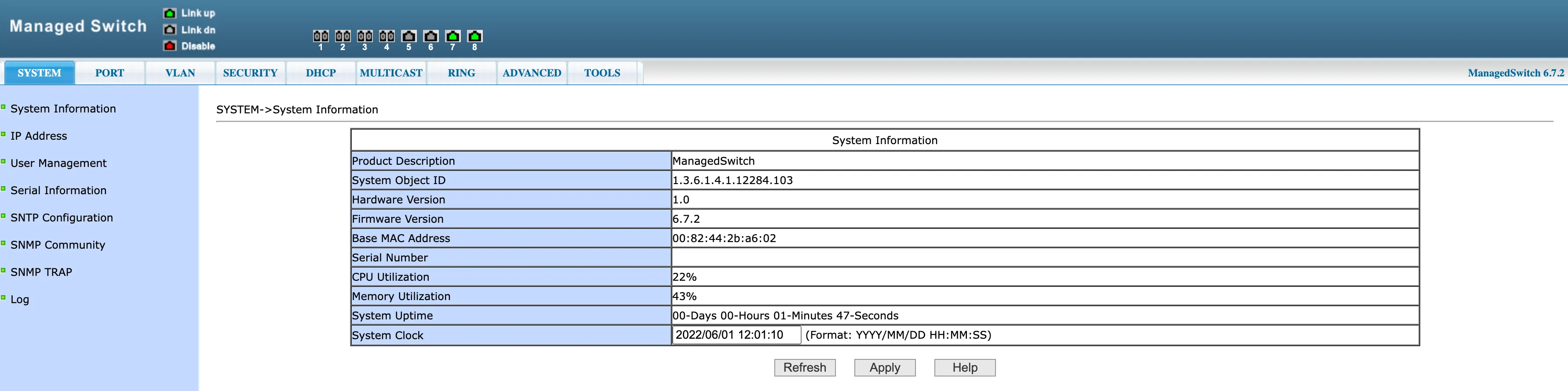

  5. Open a web browser. Go to http://192.168.0.1/. Enter username and password, both being “admin”.

1

The full user manual is available here.
